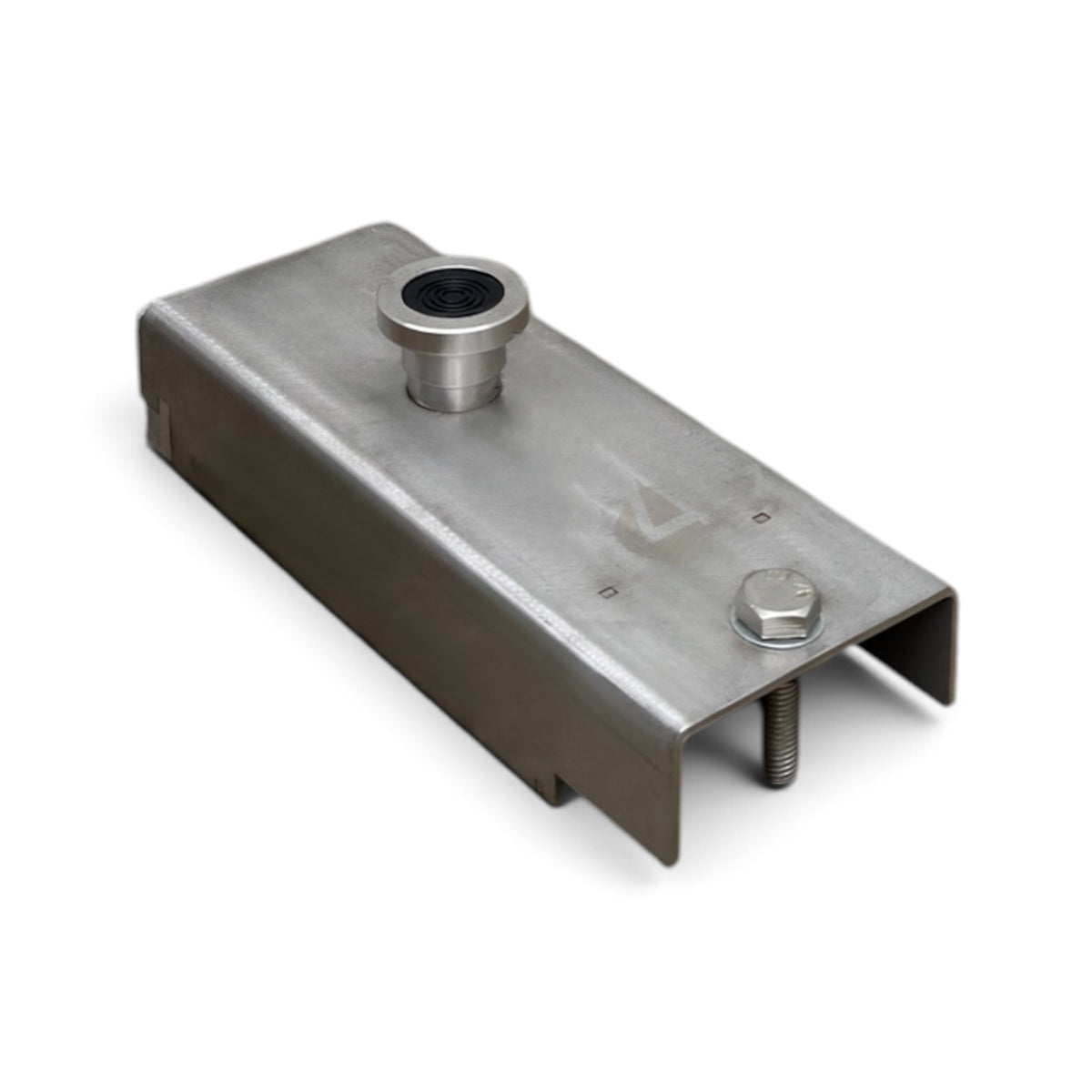

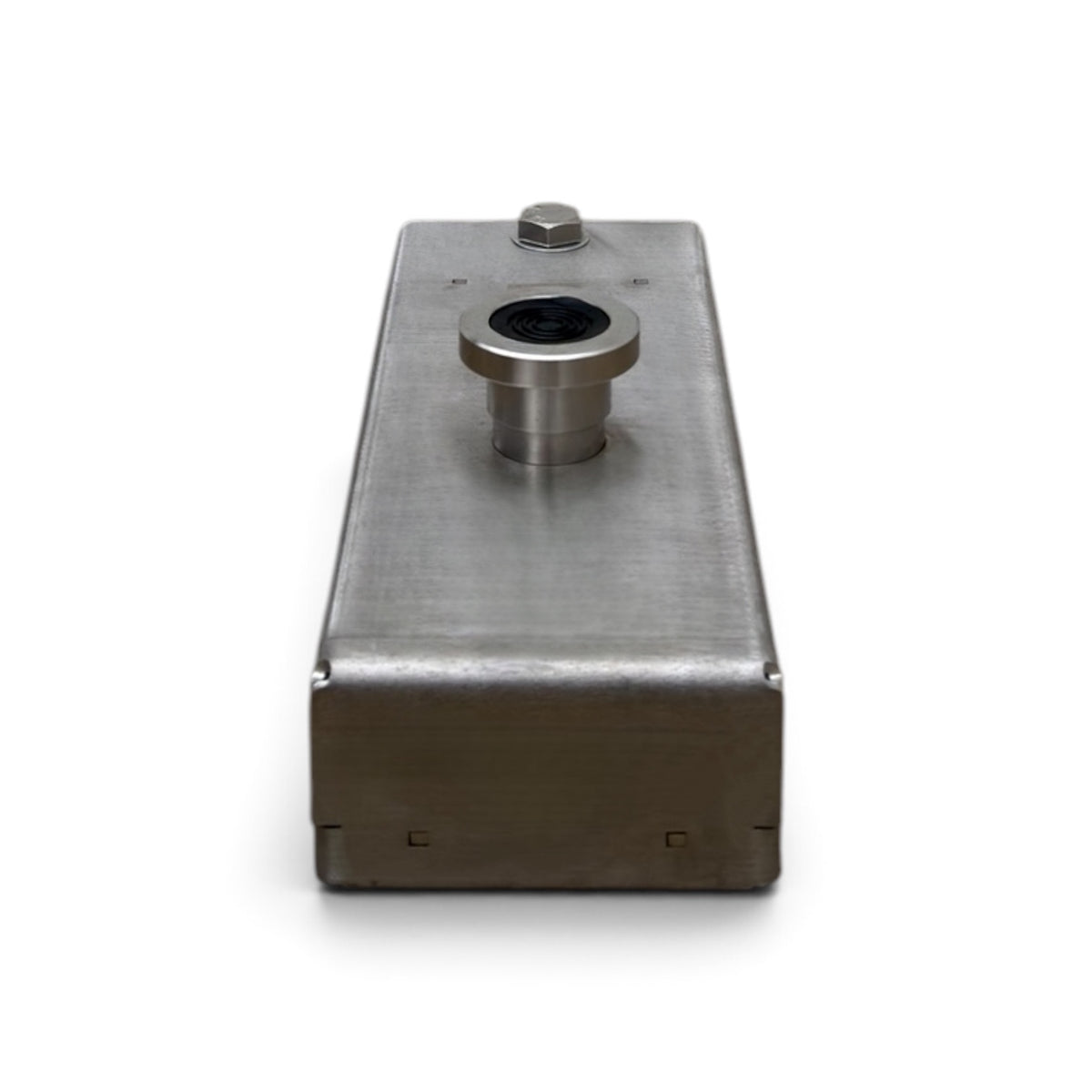

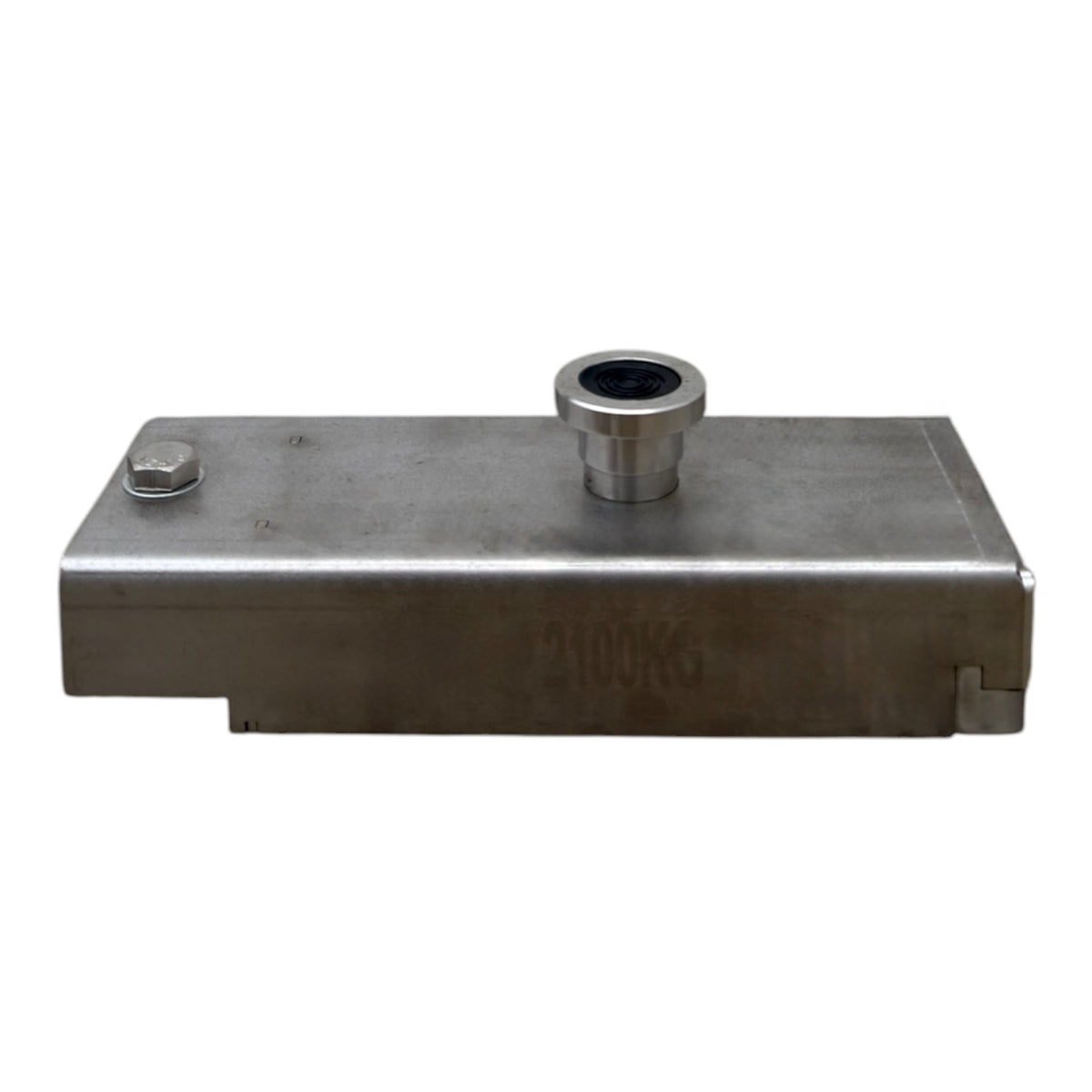

PK-NM-2100 Notched Magnet

▪ 304 grade stainless steel housing for superior corrosion
resistance
▪ 2100 kg strong vertical holding force
▪ Precision notch that sits over the steel shutter
▪ Bolt-down mechanism for positive mechanical locking
▪ Compact and robust industrial design
▪ Easy push-button engagement with lever release
▪ Suitable for steel formwork
▪ No welding or drilling into the casting table required
▪ Built for continuous daily use in harsh yard conditions

1. Ensure the steel casting bed is clean and free of debris.
2. Position the magnet so the notch sits over the top edge of the steel shutter.
3. Lower the magnet onto the casting bed.
4. Push the button down firmly to engage the magnet.
5. Tighten the bolt to lock the assembly in place.

▪ Clean the magnetic face and notch area after every use to
remove concrete slurry and debris.
▪ Wipe the stainless steel body with a clean cloth.
▪ Apply a light coat of form oil or protective spray if storing for extended periods.
▪ Store in a dry area.
▪ Never strike the magnet with a hammer or weld near it - heat will permanently damage the internal neodymium magnets.

▪ Extremely powerful neodymium magnets - risk of severe
pinching injuries.
▪ Keep clear of people with pacemakers or medical implants.

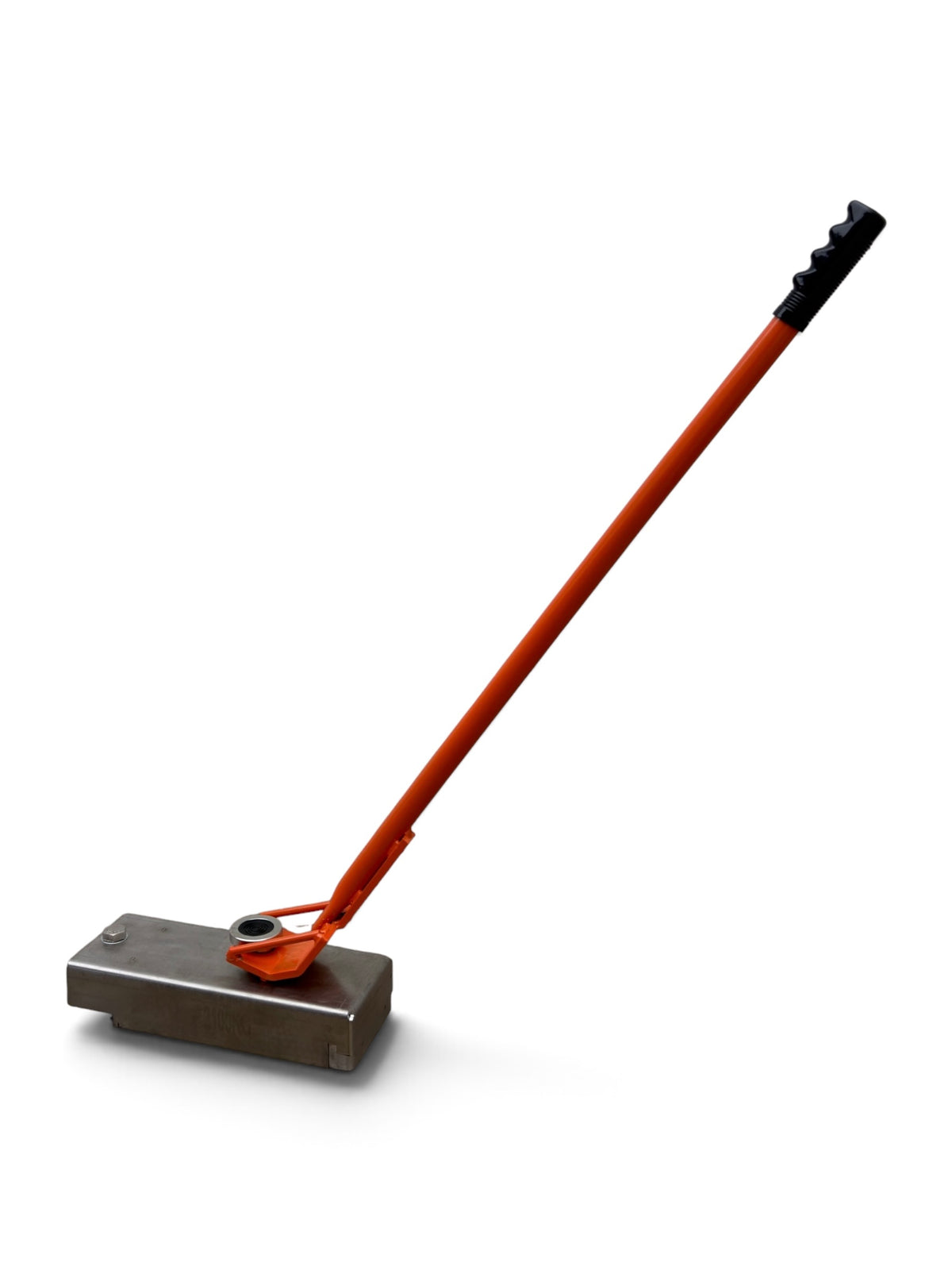

▪ Always use the correct release lever to disengage the
magnet.
▪ Ensure the bolt is properly tightened before pouring.
▪ Do not allow concrete to cure on the magnet or in the notch.

ProKast provides a 24-month warranty against manufacturing defects in materials and workmanship under normal precast yard use, commencing from the date of delivery. Warranty is void if the product is damaged by hammering, welding, improper cleaning, or other misuse. This warranty is in addition to, and does not exclude, any rights or remedies available to you under the Australian Consumer Law.
