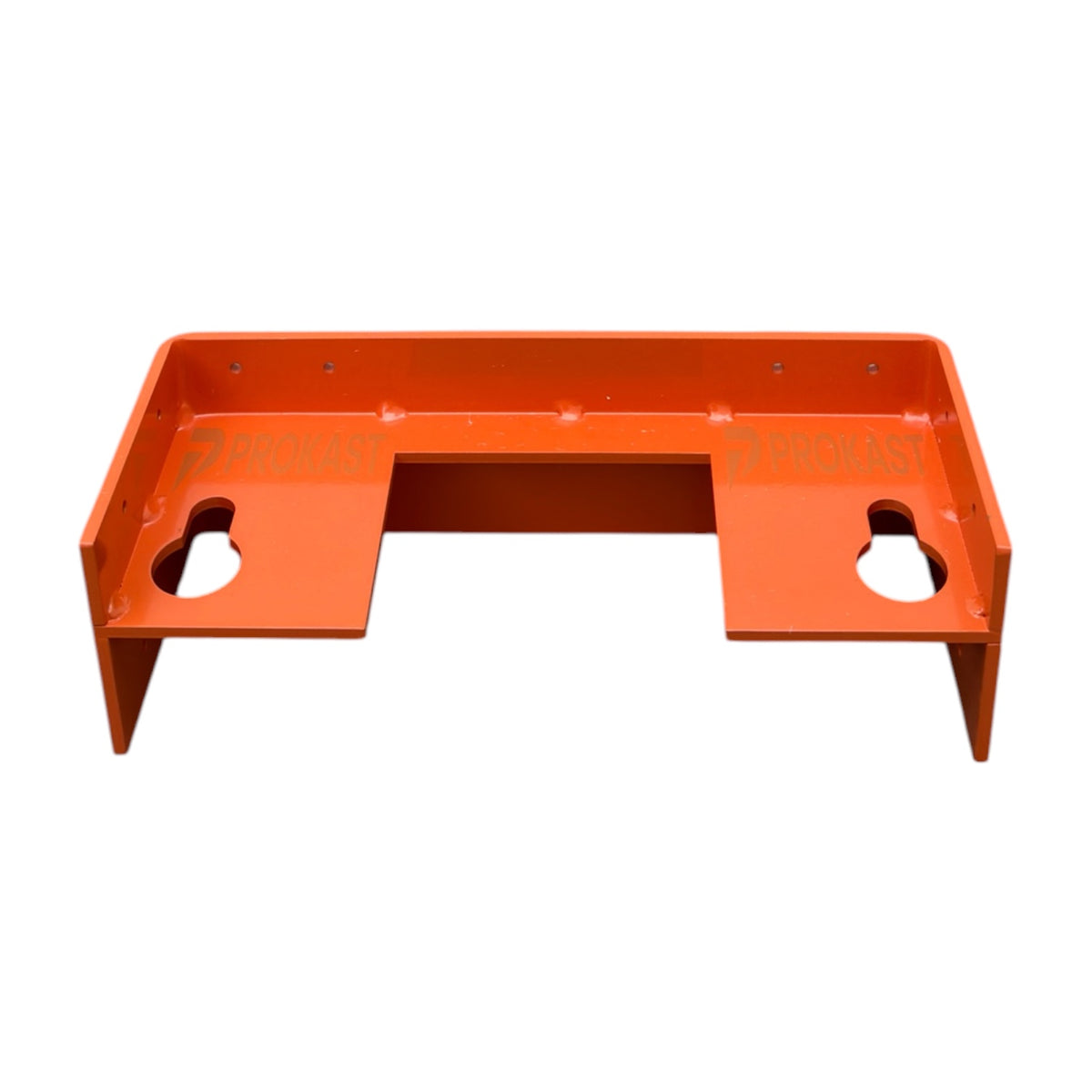

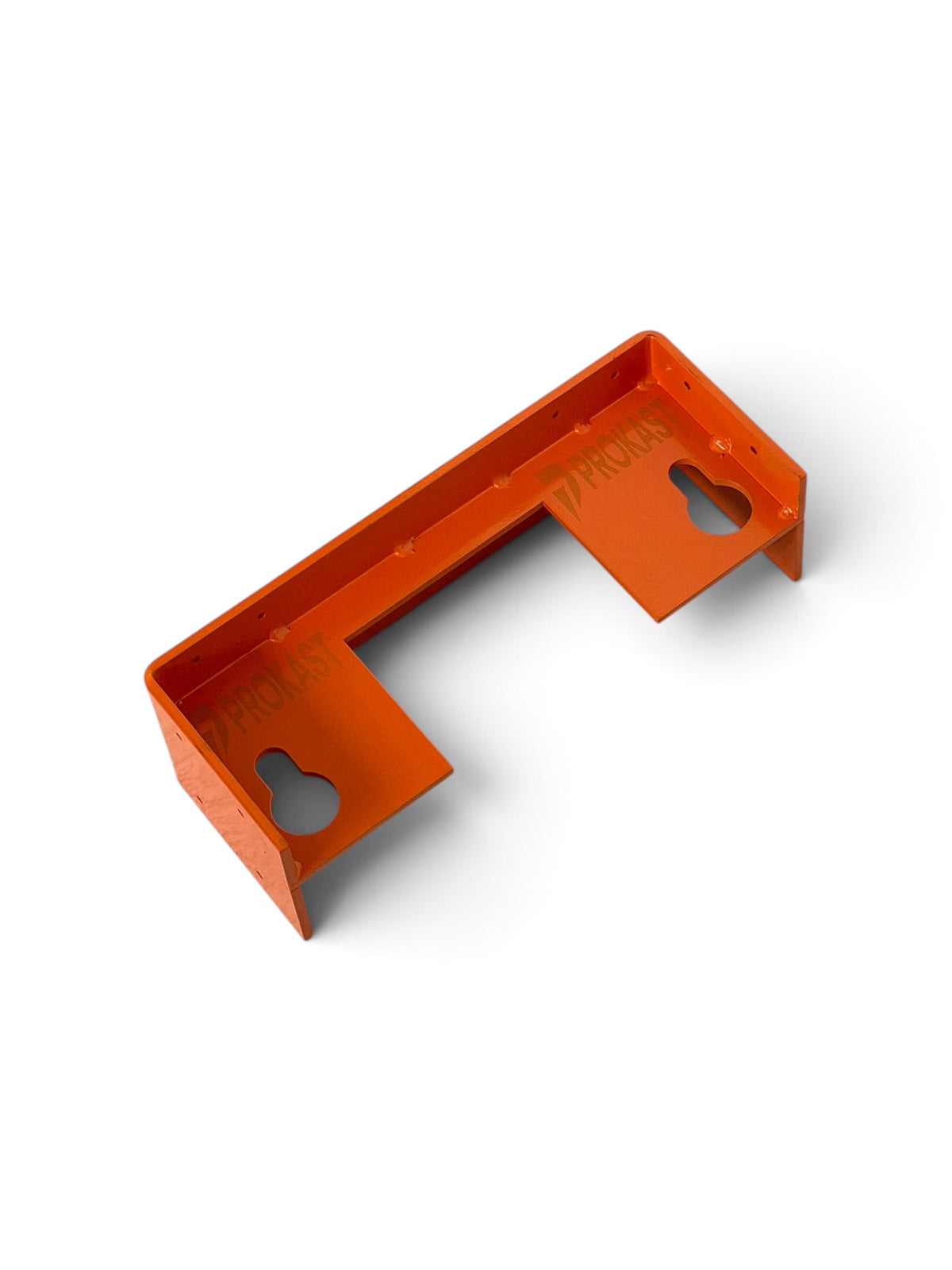

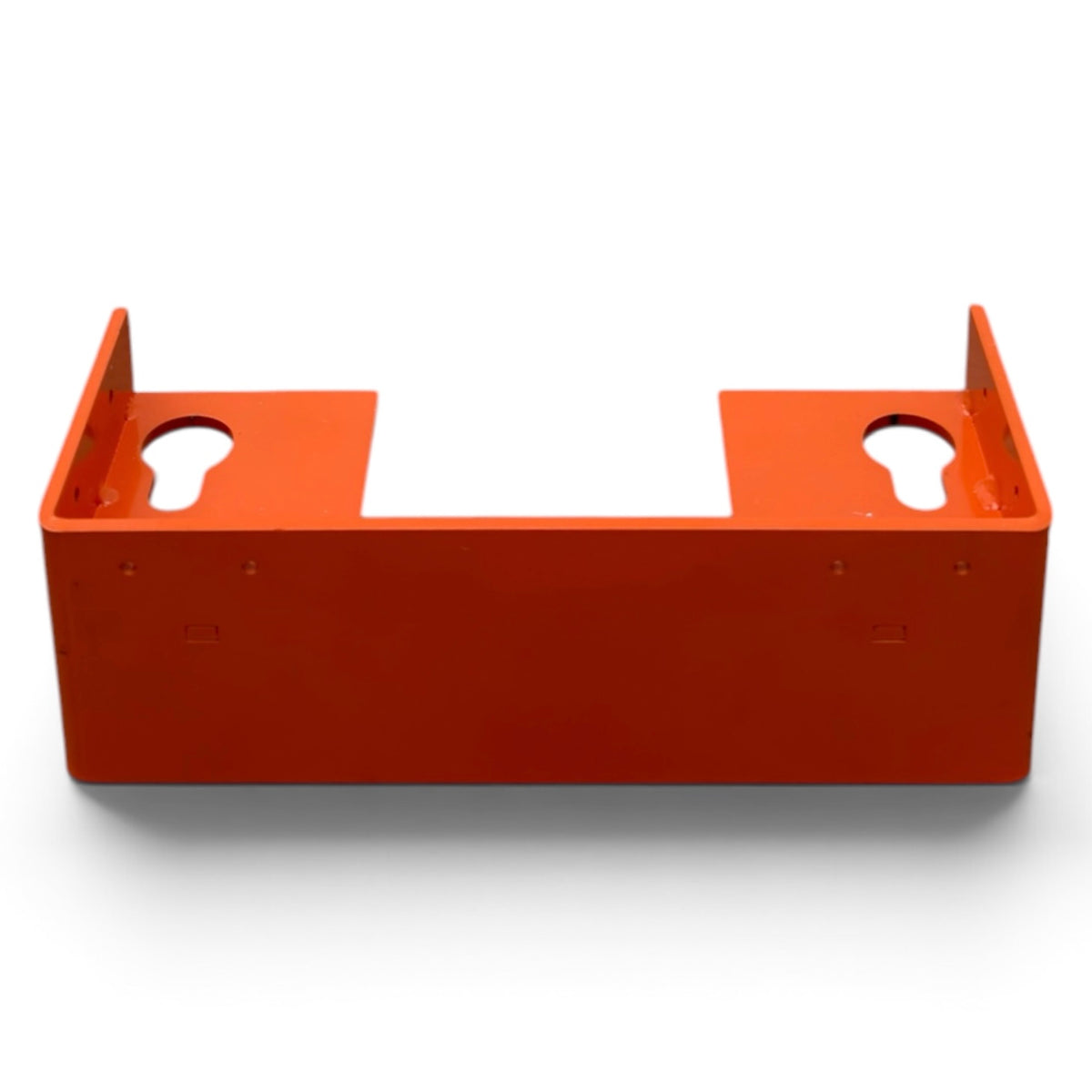

PK-SMA-105 Standard Magnet Attachment

▪ Designed specifically for the PK-SM-2100 magnet
▪ Heavy-duty powder-coated steel construction
▪ Attaches to the magnet first, then screws into timber or steel shutters
▪ Provides a secure and accurate mounting position
▪ Durable orange powder coat for corrosion resistance and visibility
▪ Built for daily use in harsh precast yard conditions

1. Attach the PK-SMA-105 bracket to the PK-SM-2100 magnet.
2. Screw the complete assembly securely onto the timber or
steel shutter.
3. Position the assembly on the clean steel casting bed.
4. Push the magnet button down firmly to engage.
To release: use the dedicated ProKast release lever to disengage the magnet. Never strike the magnet with a hammer.

▪ Wipe clean after use to remove concrete slurry and debris.
▪ Inspect regularly for damage to the powder coat or deformation of the bracket.
▪ Store in a dry area when not in use for extended periods.
▪ Do not weld near the attachment while the magnet is installed.

▪ Ensure the bracket is securely attached to the magnet and
screwed to the shutter before engaging.
▪ Always use the correct ProKast release lever when disengaging the magnet.
▪ Keep hands clear when engaging or releasing the magnet.

ProKast provides a 24-month warranty against manufacturing defects in materials and workmanship under normal precast yard use, commencing from the date of delivery. Warranty is void if the product is damaged by hammering, welding, modification, or other misuse. This warranty is in addition to, and does not exclude, any rights or remedies available to you under the Australian Consumer Law.
